High Turnover Timber Beam And Plywood Formwork System

H20 Timber Beam and Plywood Formwork System For Wall and Column Formwork

Introduction

Flat formwork consists of the panel, wood I-beams and steel back braces. The panel and the wood I-beam are fixed with self-tapping screws; the wood I-beam and the steel back braces are connected with the wood beam claws. It is easy to assemble, disassemble and modify onsite. After being assembled, the product has light weight (60kg/m2), and is convenient to construct and transport; and the construction is environmentally friendly.

Feature

1. Wall column formwork
The formwork can be assembled into different specifications depending on the size and design of the structure, and it is convenient to be extended in both width and length. The column formwork can be adapted to the column construction of different sections in a certain range.
2. Formwork with adjustable radian
Through the adjustment system and the flexibility of the plywood, it is possible to adjust the radian of the formwork, to be adaptable to concrete constructions with curved walls, columns and pier body with round ends with diameter of more than 2m.
3. Molding formwork
It is possible to customize molding formwork according to the structure size and design.

Application

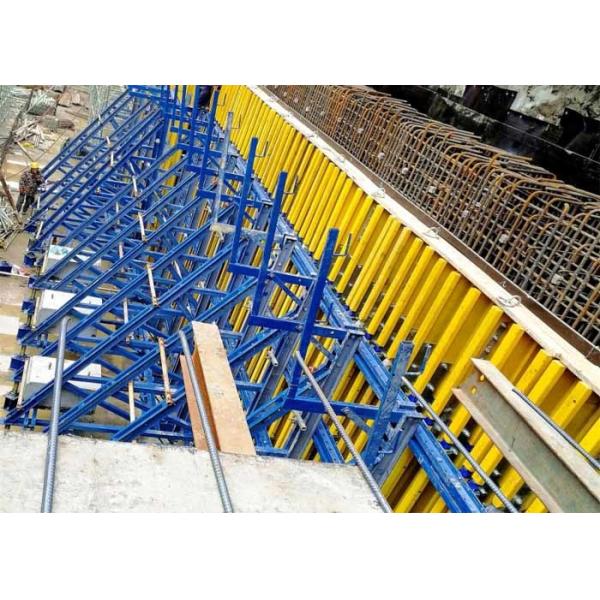

Timber Beam And Plywood Formwork System

High Turnover Wall Formwork System

High Turnover Timber Beam And Plywood Formwork System Images
