Safety Concrete Climbing Scaffolding Formwork 2.2m Main Platform

Name: Safety Concrete Climbing Scaffolding Formwork 22m Main Platform
Brand: ForPro
Price: 1 USD

China Safety Concrete Climbing Scaffolding Formwork 2.2m Main Platform wholesale

Brand Name : ForPro

Model Number : CF220

Certification : ISO and CE

Place of Origin : shanghai

MOQ : 20 pcs

Payment Terms : L/C, T/T

Supply Ability : 10000 pcs / year

Delivery Time : 30-45 work days

Packaging Details : Pallet

Material : Q235 Steel, timber beam,Plywood

Color : Yellow,Blue,Black

Size : customized

Application : Concrete Construction, Building Construction, wall and column concrete construction, Pier,Bridge,Super high-rise building etc

Product name : Hot sale sturdy long lasting , peri wall formwork system, H20 beam H20 wooden beam formwork H20 bimber team, High recycling value climbing formwork with factory price, Concrete Steel Formwork

Type : Wall Formwork, Steel formwork,Column formwork,Climbing formwork

Advantage : Easly Removable, Easy Operation Quick climbing and high saftly Coefficient

Feature : Light Weight, One-time Pouring, Fast Assembly & Positioning, Reuses

Contact Now

CF220 Climbing Formwork System Concrete Climbing Scaffolding Formwork

Outline
CF220 is a crane lifted climbling formwork which is mainly designed for high concrete wall structure, formwork and plateform can be integrity moved to next position with just one lift.It also provides multi-level platforms which make your site work much safer & easier .

Component

• ForPro Formwork System: Timber Beam, Steel Waler, Waler Clamp, Lifting Bracket.

• Climbing Brackets: Horizontal Bracket, Diagonal Strut, Vertical Waling, Travelling unit, Waler Hook Bolt.

• Anchoring System: Climbing Cone, Position Cone, Position Disc, High Strength Screw, Embedded Anchor.

Technical Specification

• Main platform width up to 2.2m, provides sufficient space for workers
• Retraction formwork panel up to 60cm, enough panel cleanings space from concrete side
• 3 to 5 levels working platform provides place for concrete pouring, formwork operation and concrete surface repairing etc.

Features
• Formwork panel can be retracted back 60cm from the concrete wall
• Formwork panels and climbing brackets are preassembled one time and can be reused many times
•CF220 climbing formwork is safely anchored on concrete structure during whole working procedure
• One climbing unit will only lost 2 embedded anchors each casting step (one unit is composed of 2 climbing brackets).

• Plywood could possible to be reused 30 times under properly operation.

Product Sketches

The Formwork Operation Process

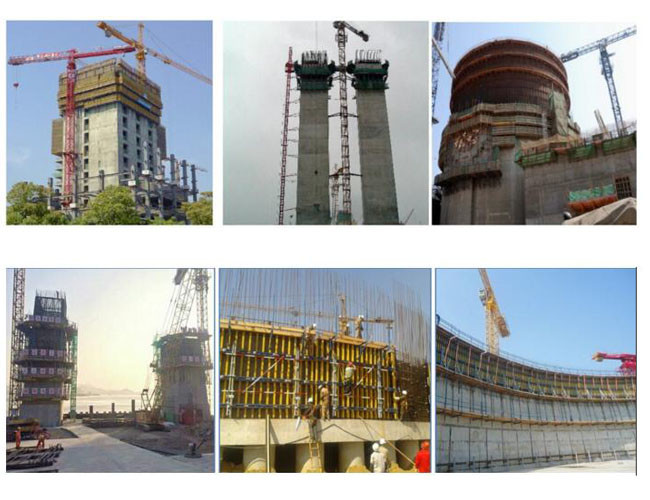

Applications

Safety Concrete Climbing Scaffolding Formwork 2.2m Main Platform
