High Efficiency Climbing Scaffold System For Core Wall And Bridge Concrete

High Efficiency CF220 Climbing Formwork for Core Wall and Bridge Concrete

Description

Climbing Formwork CF220 is a crane dependent climbing system and support structure widely used to pour high walls. It performs as a loading-bearing platform as well as a safe working platform. Depending on the length of the platform, the Climbing System is applicable to heights of more than 100 m over ground and allows a maximum formwork height of up to 6.0 m.

Component
Platform width: 2.2m
Finishing platform: for removing the climbing cone, polishing concrete surface etc.
Anchor system: should be pre-fixed into the formwork and left in the concrete after pouring.
Formwork: can be moved horizontally, vertically and tilted to meet siterequirement.
Main platform: provide workers a safe working platform.
Safety lader:used for workers up and down.

Features
_* Formwork panel can be retracted back 60cm from the concrete wall
_* Formwork panels and climbing brackets are preassembled one time and can be reused many times.
_* CF220 climbing formwork is safely anchored on concrete structure formwork adjustment and surface repair.
_* One climbing unit will only consume 2 anchors each casting step (one unit is composed of 2 climbingbrackets), and plywood could possible to be reused 30 times with properly operation.

The Concrete Pouring Process

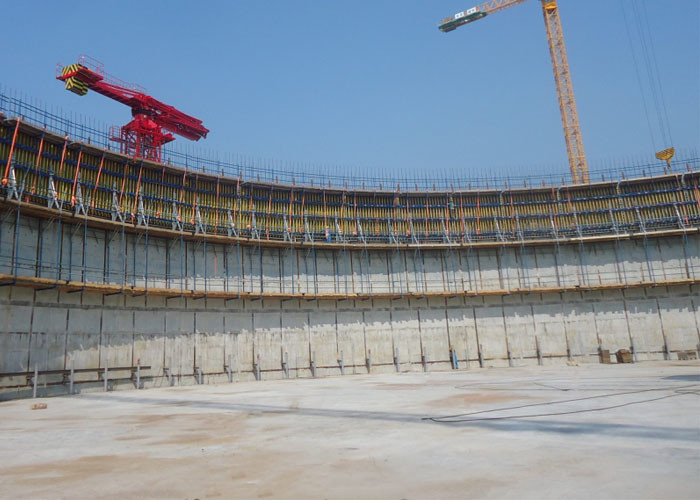

Applications

climbing scaffolding system

self climbing scaffold system

High Efficiency Climbing Scaffold System For Core Wall And Bridge Concrete Images
